HP Rack Items

Click on any image to view a larger JPEG

Smaller items will ship UPS.  Racks will have to go by Freight.  I will have to contract palleting and banding and pass those costs on to you.  Pick-up in the Twin Cities area or perhaps meeting half-way within 400 miles is possible.

These items concern  the C2785A 1.1 meter (21IU) and C2786A  1.6 meter (32IU) family of racks.  Some of these items will work in just about any 19" rack.

I have the C2785A/C2786A Manual that I can help you reference (copy for $ :-) ).

HP 9000 817S Face Plate

With Mounting Frame

Qty:  1    Wt:    #'s      Price:  $5.00

Extractor Fan Assembly   230V

Keeps the air moving and really keeps heat build-up under control.  Has power cord that plugs into PDU.  Mounts on inner top of rack.
HP C2786-60024 also  P/N 3160-0228
Qty:  1    Wt:    #'s      Price:  $10.00

For 110V I think I have two fans that replace the 240V fans

C2786A 220V 1.6 Meter PDU  E4456A
HP C2786-63006
Includes main cord and forehead assembly that contains power switch.
See cords on Misc page.

Qty:  1
Wt:   #'s
Price: $20.00

HP 6000 Mass Storage System Mounting Frame (Rack)

These metal trays have retaining clips that keep a box of drives clamped down.  Face flates attach to clips--see elsewhere on this page.  The vertical portion of the metal could be cut off with a sawzall and the tray flipped upside down to make a strudy, smooth shelf.
See rails elsewhere on this page.
Qty:  12   Wt:   #'s      Price:  $15.00 each

HP 1 IU Rack Filler Panels C2791A

Six per box.

Qty:  6 boxes NIB
Wt:   6#'s/box
Price:  $15.00 /box NIB

C2785A / C2786A rail sets

These stout rails have tabs that catch on notches in the vertical uprights that keep the rail level while you tighten it down with hardware.  Each set (pair) of rails comes with 4 Torx fasteners and nut-plates.

These rails were designed with HP gear in mind.  If you have a metal saw, the rolled over edge could be lopped off
giving full 19" width at the rail.
Qty:  30 sets     Wt:  #'s/set    Price: $10.00/set

HP 6000 3 IU Faceplates

These faceplates attach to clips on the metal frame (see above)

Some items like DAT dirves or CD drives peek out the front by removing one segment.  Other drives remain behind the faceplate and all central segments remain in place

Wt: 1# each
Price: $5.00 each 3 for $10.00
Qty: 2-SCSI R      23-SCSI SE       12-SCSI SW-W

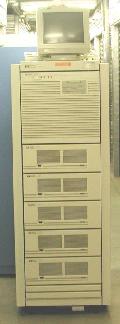

C2786A rack.  All sides and back door.  240V PDA, exhaust fan, clean, no dings. Rails extra (above).  Rack to the right is what you get (minus the stuff in it :-) )  1.6 meters tall about 34" deep.
$100.00 + shipping.  Qty 5 avail

C2786A rack pair.  Set of two racks that were bolted together with sides on the outer left and right sides.  Includes exhaust fan assembly , 240V Power Distribution strip, and back door for each. Clean, no dings.
$75.00 each plus shipping.  1 set avail
