JØ/Series-Resonant Blocking Caps

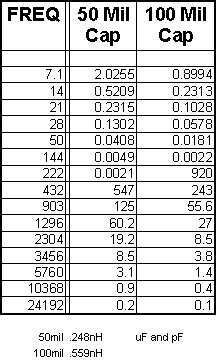

I was recently reading the ARRL UHF/Microwave Experimenter's Manual. In Chapter 6 "Design Techniques" - authored by Bill Troetschel, K6UQH - he discusses JØ capacitors that are chosen to series-resonate the parasitic inductance of the capacitor leads and housing (at the frequency of interest). He states that in general, the inductance of 50-mil chip caps are .25nH and .50nH for 100-mil. He then presents equations to determine the inductive reactance and capacitance for the frequency of interest. The implication is that when selecting chip caps to act as DC blocks (but trying to achieve no other high-pass or low-pass filtering), the series-resonant chip cap will achieve DC blocking but attenuate your frequency of interest the least. Through the miracle of Excel, I had some fun playing with the equations by plugging in ham band frequencies from 160m to 24GHz. Then, courtesy of the prize table at a CSVHFS Conference, I referred to ATC chip cap graphs to plug in their stated frequency of series-resonance for several chip values. I chased the equations backwards and was able to confirm the general inherent inductance values offered in the ARRL book. In the graph below, I've left the cap values determined by Excel--you'd pick a common chip value that is "close enough". Ceramic, Silver Mica, or larger dimensioned chip caps have more inherent inductance and their series-resonant value would be generally smaller than the ATC caps for which the table below is intended.
|
|
